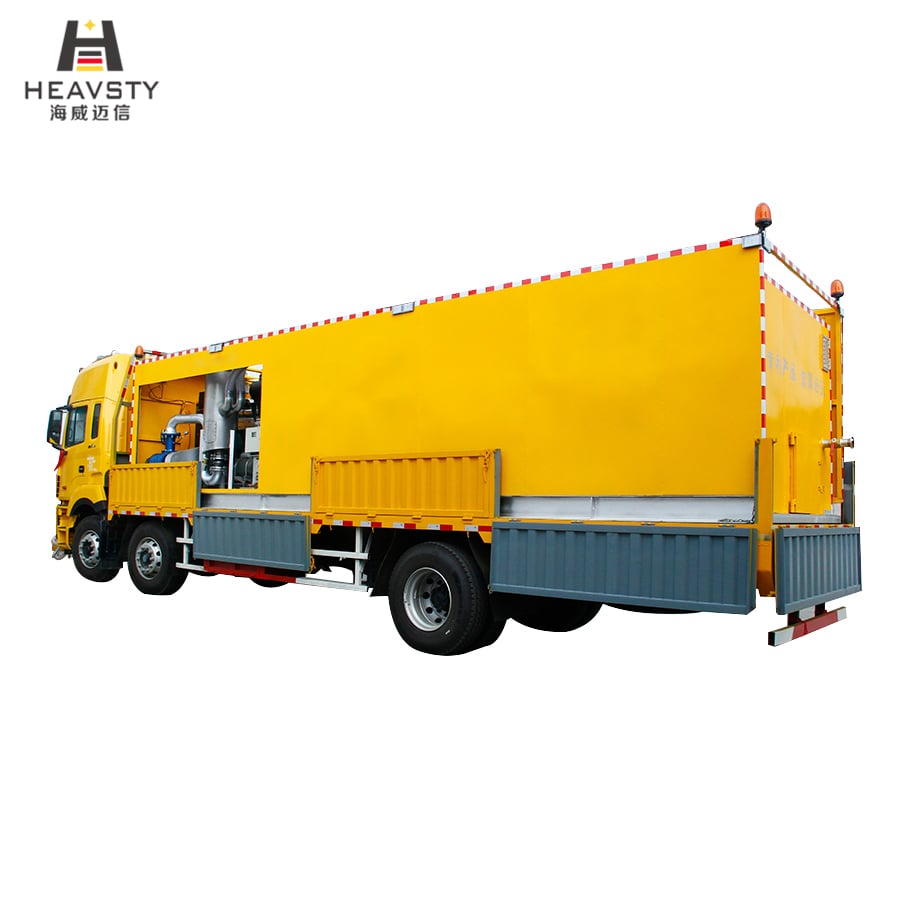

Home > Products > Ultra Pressure Water Blasting Road Marking removal
We’re the biggest road marking equipment manufacturer in China. We can provide all kinds of marking equipment, OEM, and ODM service.
Our advantage is customization and after-sell service and we have all machine accessories. We manufacture Thermoplastic road marking machines, Cold airless road marking stripers, MMA two-component road marking machines, Road marking removal, Road marking paint, High-pressure water blasting road marking removal, Airport rubber removal…
Airport Rubber Removal Technical Parameters
| Working speed | removing rubber ≥ 800- 1000m ²/ h |
| Engine | Weifang Weichai Power (DEUTZ) |
| Power | 255kw |
| Speed | 1800r / min |
| Pump speed | 500 times/min |
| Pressure | 1400bar |
| Flow rate | 85L/min |
| Plunger | cemented carbide 26 |
| High-pressure seal | imported high-quality molded seal |
| cold starvation system | Forced lubrication system and oil cooling system, imported high-quality safety burst diaphragm |
| Full computer monitoring instrument box | oil temperature alarm, water temperature alarm, diesel engine speed, water pressure, voltage display working time, machine fault display, water pressure precision pressure regulation |
| Booster pump | Front booster pump max 6kg booster |
| Filter | double stainless steel vertical filter, two-stage filtration |
| Water supply protection system | including water supply low pressure protection system |
| Recovery system | Sino-Japanese joint venture Zhanghuang vacuum pump, pressure -0.4bar |
| Water tank | clean water tank 6 tons, sewage tank customized according to the model. |
| Fuel tank | 250L |
| Vehicle carrying travel control | constant speed travel controller (without manual control), minimum speed of 5m / min, electronic gear shifting with vehicle gear, constant speed cruise, remote monitoring system of vehicle carrying cab (driver can real-time monitor the rubber removal of rubber removal vehicle through video image in cab), optional rubber removal head is Hammelmann rotator (3 groups of 48 nozzles with 1m width) |
| Host size | 3M * 2.2m * 2.25m, the overall size can be customized according to the model |
| Net weight | 7 tons (excluding trucks) |
| Machine size | 6m×2.2m×2.3m |
| Appearance:Yellow(customizable) |
The equipment is integrated with a protective cover, and can be easily separated from the vehicle
