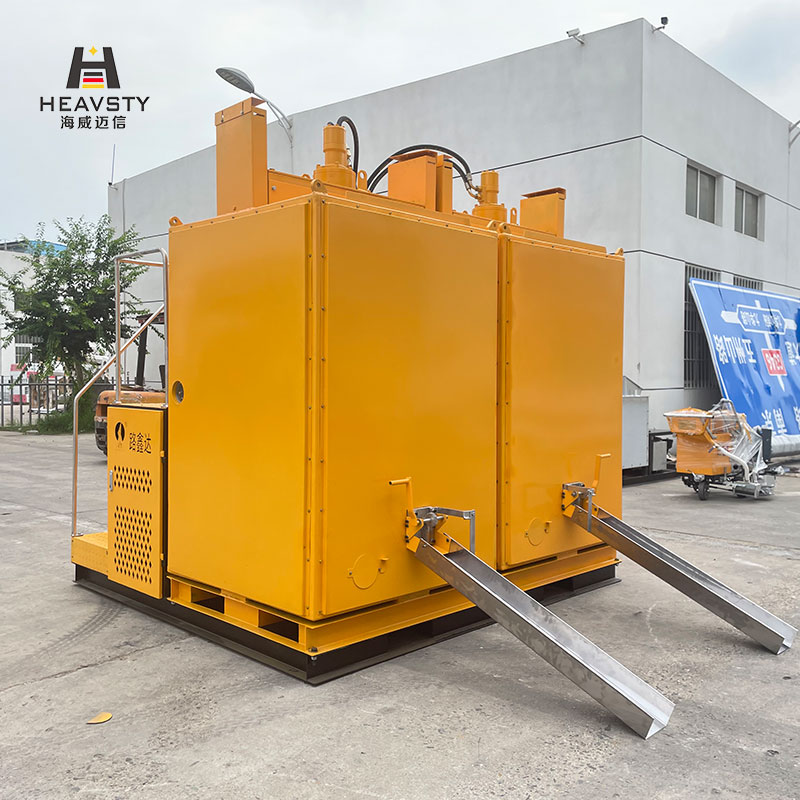

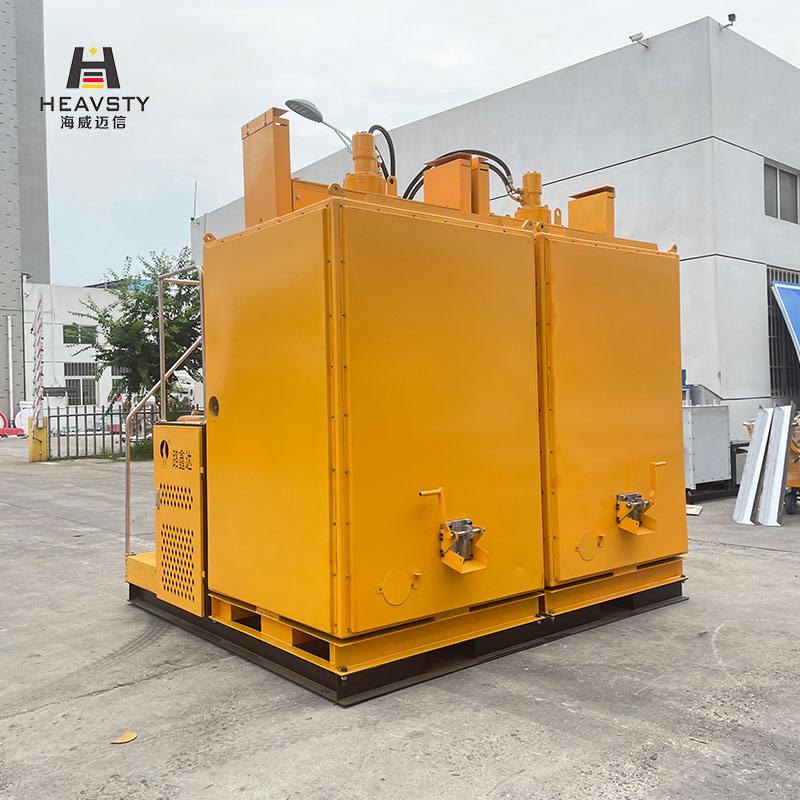

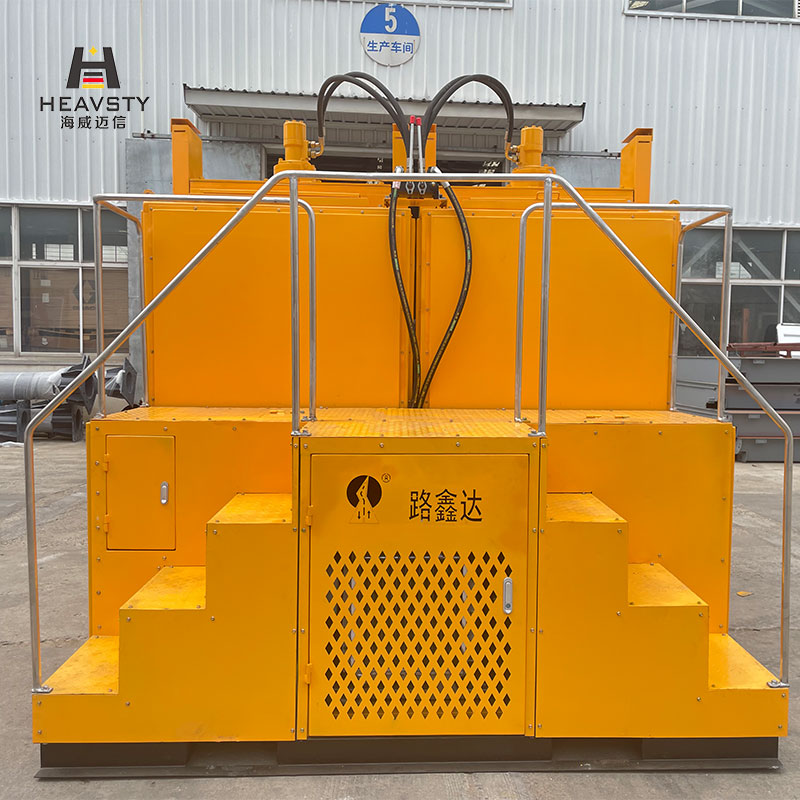

HW-6T High Efficiency Energy Saving Pre heater

HW-6T High Efficiency Energy Saving Pre heater

The hot melt kettle is equipped with efficient mixing arms and a 50mm insulation layer, ensuring uniform heating of the material. Automatically select the direction of rotation for better mixing of materials. The hot melt kettle is also equipped with a thermostat to maintain the temperature of thermoplastic materials from+50 to+230 ° C. Including an integrated display diesel burner as standard, displaying the actual temperature of the coating.

Inquiry

Parameter
Related products
Inquiry

Parameter

We’re the biggest road marking equipment manufacturer in China. We can provide all kinds of marking equipment, OEM, and ODM service.

Our advantage is customization and after-sell service and we have all machine accessories. We manufacture Thermoplastic road marking machines, Cold airless road marking stripers, MMA two-component road marking machines, Road marking removal, Road marking paint, High-pressure water blasting road marking removal, Airport rubber removal.

Heating	Indirect heat transfer through thermal energy
Hydraulic transmission system	hydraulic bidirectional stepless stirring
Motor	BM500
Diesel power device	Kubota 37kw diesel engine Silent Hatz diesel engine 2L 41C model 28.4/horsepower (20.9 kW) Speed 2000L min, equipped with reinforced AC generator Starter and battery 12V 100AH
Diesel consumption	4kg * 2/h
Hydraulic oil tank	0.05m
Internal structure of the basket body	frame structure There is an insulation board and insulation material between the inner and outer cover plates

Double spiral full tank inner heating system

Diesel tank	0.09m3
Thermoplastic capacity	2 * 1.2m3
Heating system	The American diesel version of the stove is equipped with intelligent temperature control

The control system can automatically ignite and extinguish the engine
