It can remove road markings without damaging the road surface, and wastewater and residues can be sucked into the waste water tank. Equipped with more nozzles, it can spray from different angles and clean the markings without damaging the road surface.

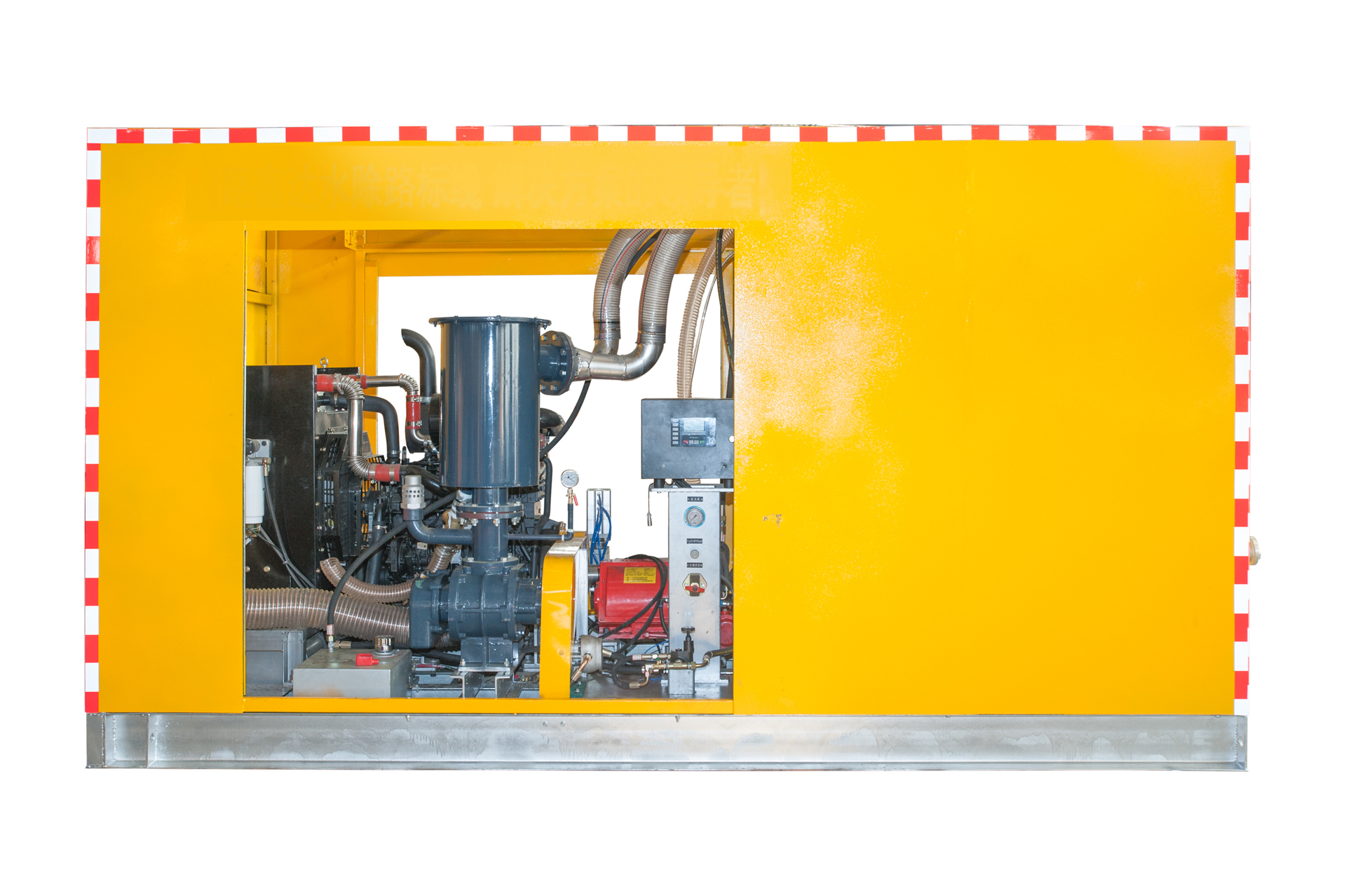

The automatic separation system of this device can suck residual water and wastewater into a vacuum chamber, and in addition, the residue can be separated from the wastewater. The residue can be automatically placed in plastic woven bags, and the wastewater will flow into the wastewater tank. When the wastewater tank is full, it will be discharged into the sewer through a water pipe. Very convenient, very safe and environmentally friendly.
| Diesel engine | WEICHAI disel enginee for cylinder Generator 129KW |
| High pressure pump | manufactured by factory pump , pressure 200Mpa, Flow 40L/min |
| Bearing | Japan NSK, hard alloy Ø19.1, pump speed 530 rate/min |
| High pressure seal | Imported moulding seal |
| Booster pump | Front booster pump with a maximum boost of 6 kilograms |
| Remove width | 150-250mm(customzied) |
| Recovery tube | length 24m, inner diameter 75mm |
| Actuator wheel width | 25cm |
| Water tank | clean water (6T) and sewage tank (7T) / Customized |
| Filter | Double layer stainless steel vertical type filter |
| Water supply protect system | Include low pressure protection system |
| Recovery system | SSR Vacuum pump, -0.4bar(Sino-Japanese joint venture) |
| Oil tank | 250L |
