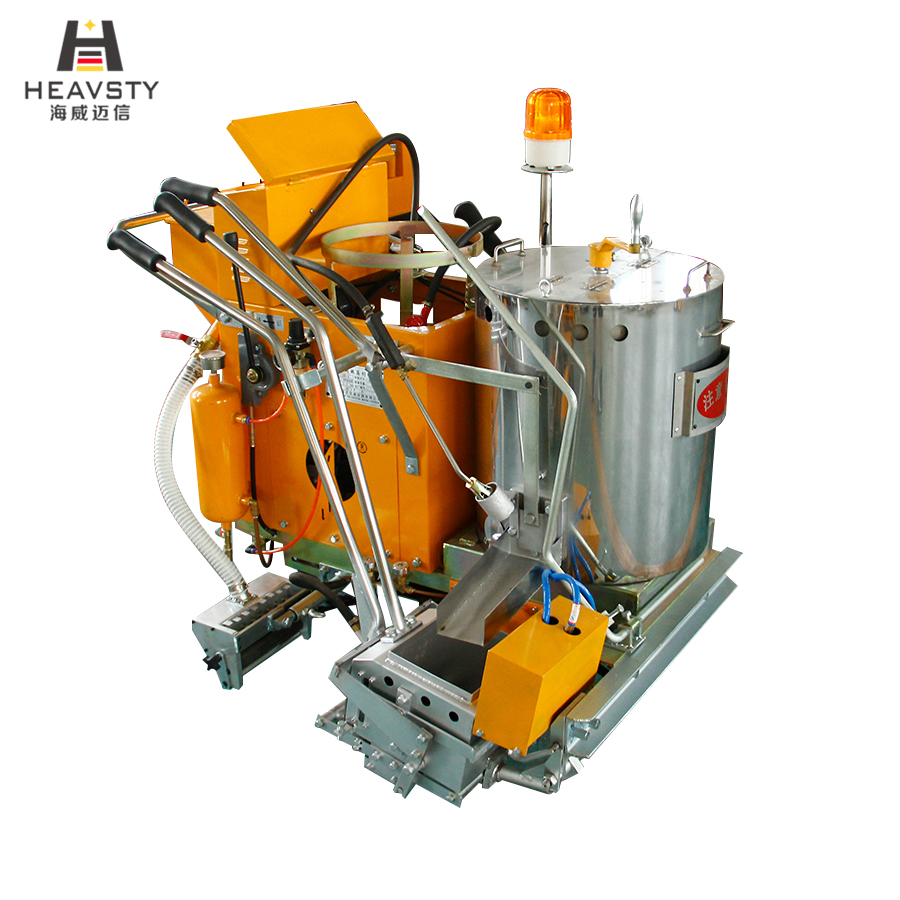

The rib line marking machine adopts the latest intelligent program controller and humanized control panel from Germany, which realizes the method of one-time construction of convex type and basic marking, and is equipped with stepless speed change walking system with free advance and retreat, which greatly improves the work efficiency, makes the marking convex type, height, spacing, precision and accuracy, and can fully meet the needs of various road conditions and achieve the goal International standards.
USA Brand Eaton Walker
Jaguar Air Compressor
Siemens Integrated Computer
Omron Sensor
Camozzi Solenoid Valve
Camozzi Air Cylinder
| Engine | Four stroke gasoline engine. |
| Walking system | hydraulic drive system |
| Line width | 150, 200, 300, 400, 450mm |
| Coating thickness | 1.5-4mm (adjustable protrusion height |
| Adjustable bead spreader | automatic glass microbead spreader |
| Glass microbead storage box | 10KG |
| Box material barrel volume | 100kg |
| Heating method | liquefied petroleum gas |
| Edge blade material | hard alloy, randomly equipped with a set of 15mm oscillating line hopper |
| Weight | 225KG |
Heavsty : a scientific and technological enterprise which is engaged in the professional road marking machine research and development,design,production and sales.
