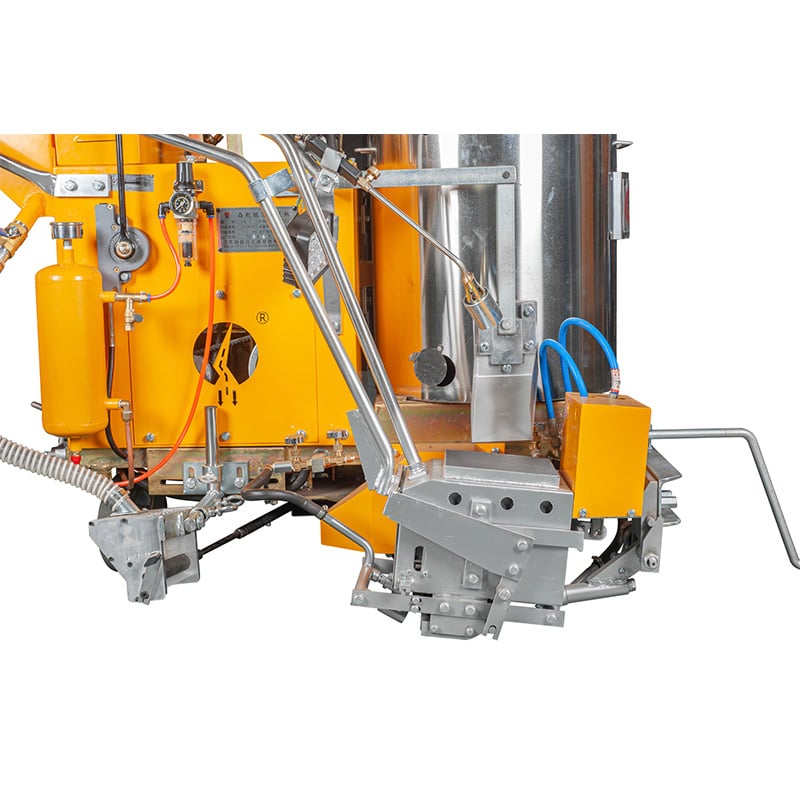

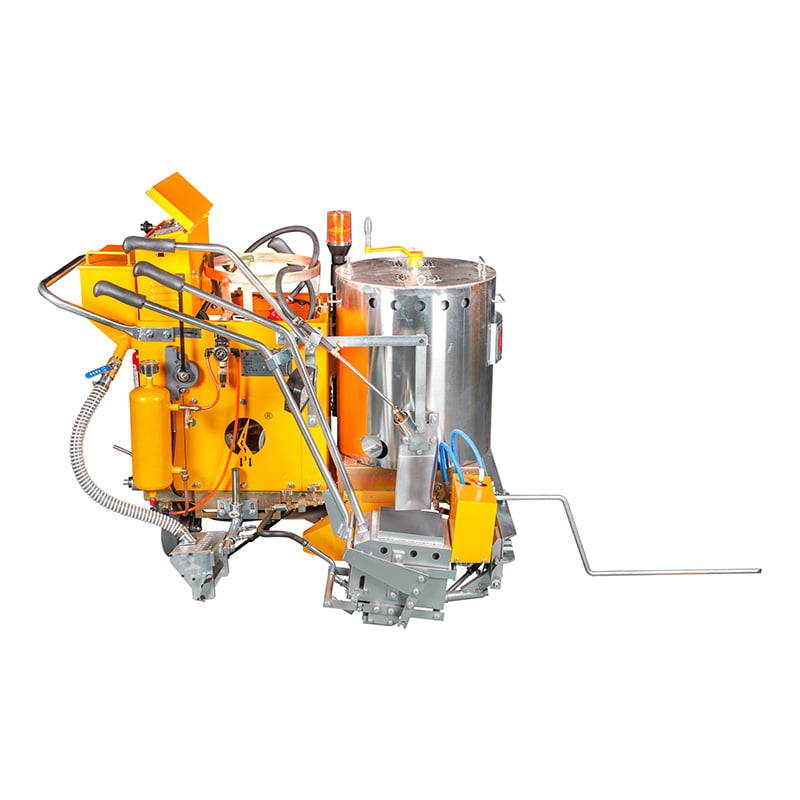

Heavsty Electrical Rib Line Road Marking Machine

We’re the biggest road marking equipment manufacturer in China. We can provide all kinds of marking equipment, OEM, and ODM service.

Our advantage is customization and after-sell service and we have all machine accessories. We manufacture Thermoplastic road marking machines, Cold airless road marking stripers, MMA two-component road marking machines, Road marking removal, Road marking paint, High-pressure water blasting road marking removal, Airport rubber removal…

  • Parameter
  • Related products
  • Inquiry
Parameter

The rib line marking machine adopts the latest intelligent program controller and humanized control panel from Germany, which realizes the method of one-time construction of convex type and basic marking, and is equipped with stepless speed change walking system with free advance and retreat, which greatly improves the work efficiency, makes the marking convex type, height, spacing, precision and accuracy, and can fully meet the needs of various road conditions and achieve the goal International standards.


Battery 48VDC 30A
Computer Siemens synthetic LCD display, integrated control panel
Motor 48VDC 550W dual wheel drive
built-in Differential, electronic brake
Air compressor 48DVC 550W 0.8pa
50L/mm oil-free silent, maintenance free
Working speed s 1000m/hour
Maximum climbing slope 15 °
Bulge height 0-10mm Rubber wheel
Marking width 150/200/300/400/450mm can be selected
Size and weight 1400 * 1050 * 1050mm235KG (including battery and 20cm bucket) Capacity
Bead box capacity 10kg
